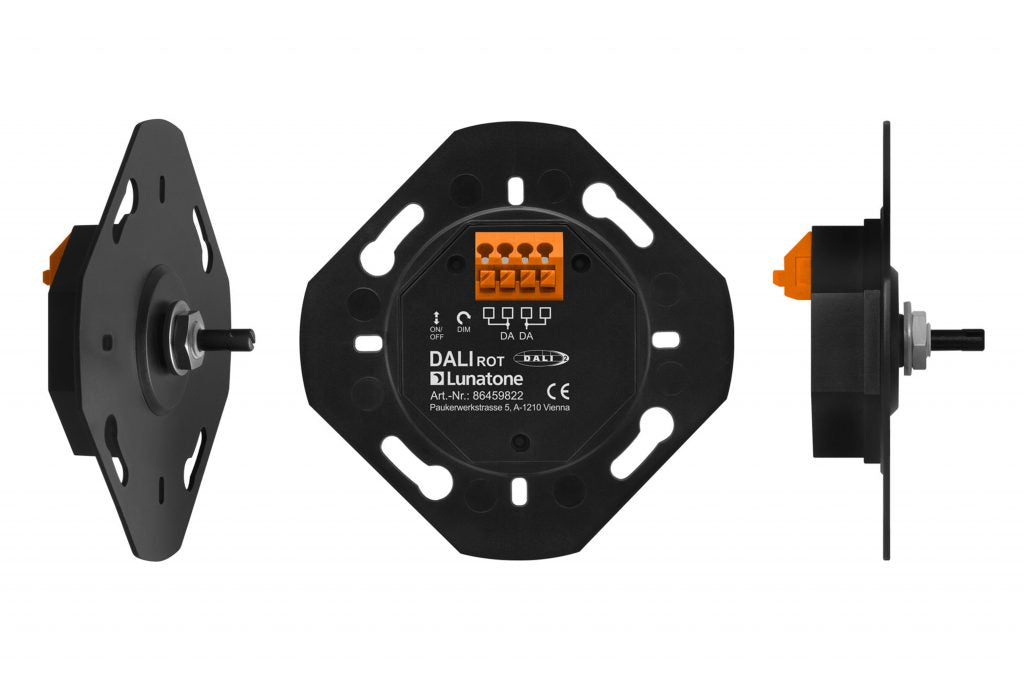

Lunatone DALI ROT is a rotary knob basis to control the light level of DALI luminaires. Versions for Tunable White or RGB-capable luminaires are also available.

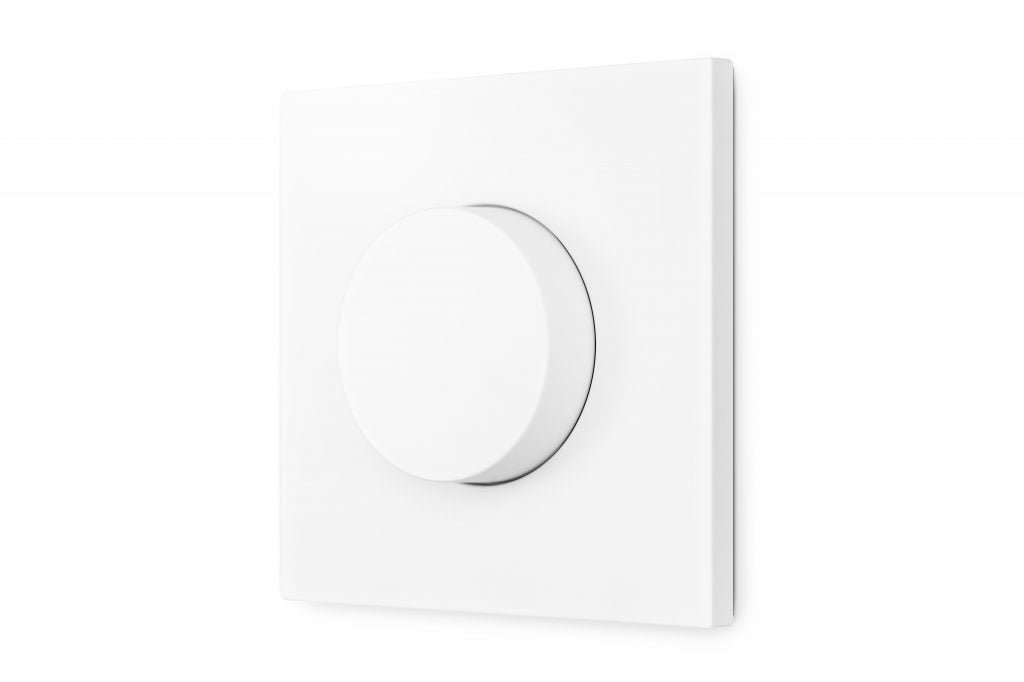

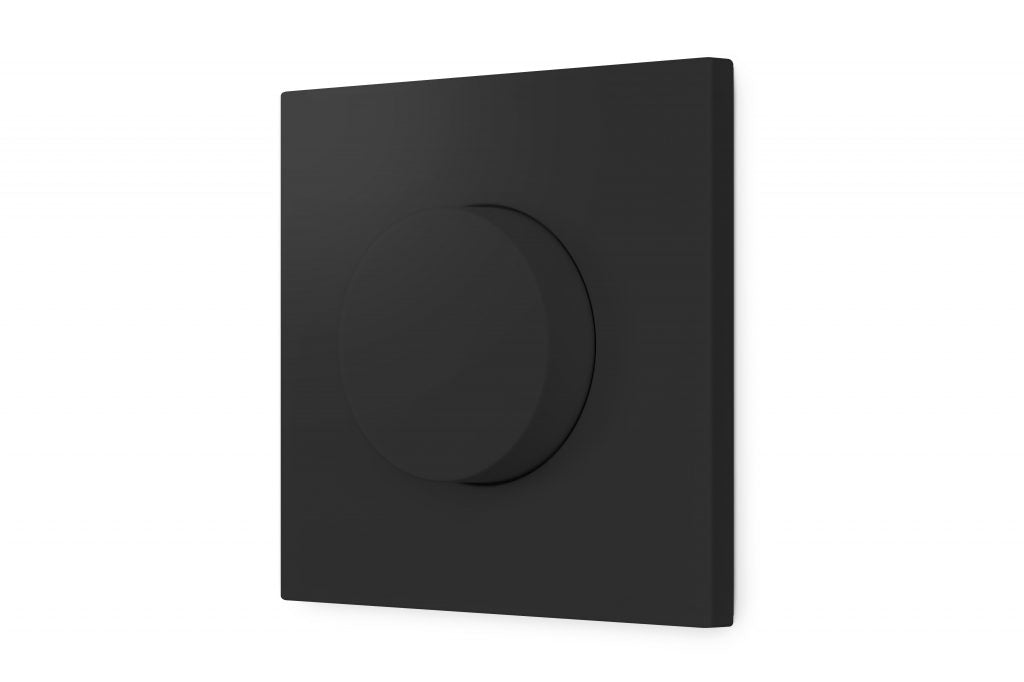

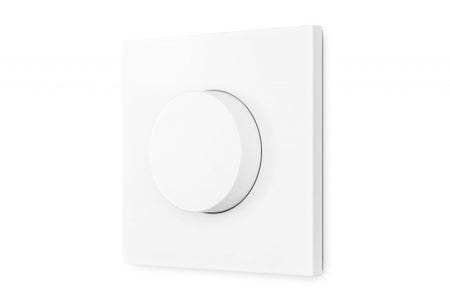

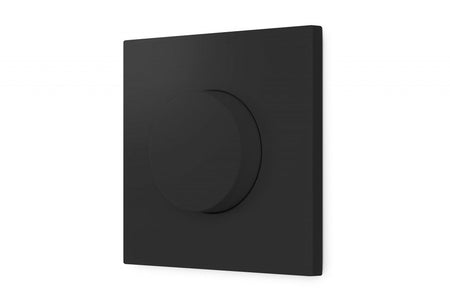

The Lunatone DALI ROT device was developed to fit the rotary covers and knobs of most manufacturers and to enable their integration in the DALI system.
Specifications
Technical data
Ambient temperature | -20°C to +75°C |
Protection class | IP20 |
connection wire cross section | max. 1.5mm² |
Mounting | back box |
Electrical data
Supply | from DALI bus |
Control input |
knob with integrated tactile function |
Current consumption |
3.5mA (DALI) |
Output | DALI |
configurable via DALI Cockpit | yes |
Function
Device type | Control device |
Power-on behaviour |
Configurable |
ROT |
switch/dim |
ROT TW |
switching/dimming+ changing colour temperature |
ROT RGB | switching/dimming + changing colour |
multi-master capable | yes |
Dimensions
Length | 70mm |
Width |
70mm |
Height |
45mm |
diameter axis |
4mm (adapter for 6mm on request) |
