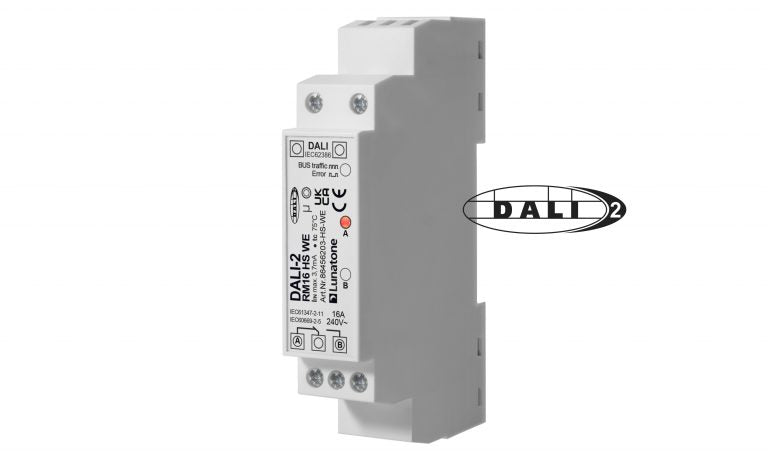

Lunatone DALI-2 HS WE

Lunatone

Regular price £83.36

Shipping calculated at checkout.

Lunatone DALI RM16 HS WE provides a relay contact that can be controlled via the DALI bus. In this way, loads without a DALI input can be easily integrated into a DALI circuit. Permanent loads up to 2kW can be switched via DALI commands. The purposeful switching in voltage zero crossings, enables an increase of the device lifetime. Power-up mode and system-failure settings can be configured using the DALI Cockpit PC Software.
zero cross switching
1 changeover

Specifications

Technical data

Ambient temperature -20°C to +60°C
Protection class IP20
Connection wire cross section 2.5mm²
Mounting DIN Rail


Electrical data

Supply From DALI bus
Typ. current consumption DALI
2.7mA
Input
DALI
Relay output switch on/off voltage 250V AC

Max. nominal load 2000VA and 12A Max
Switching method
Zero cross switching
Maximum switching frequency 1Hz
Type of relay contact
1 changeover
Switching operations at nominal load - resistive
>10^5 (HS) / >3*10^4 (WE)

Function

Device type
DALI Switching actuator
Configurable via DALI Cockpit Yes

Dimensions

Length 98mm
Width
17.5mm
Height
56mm
Colour Grey
