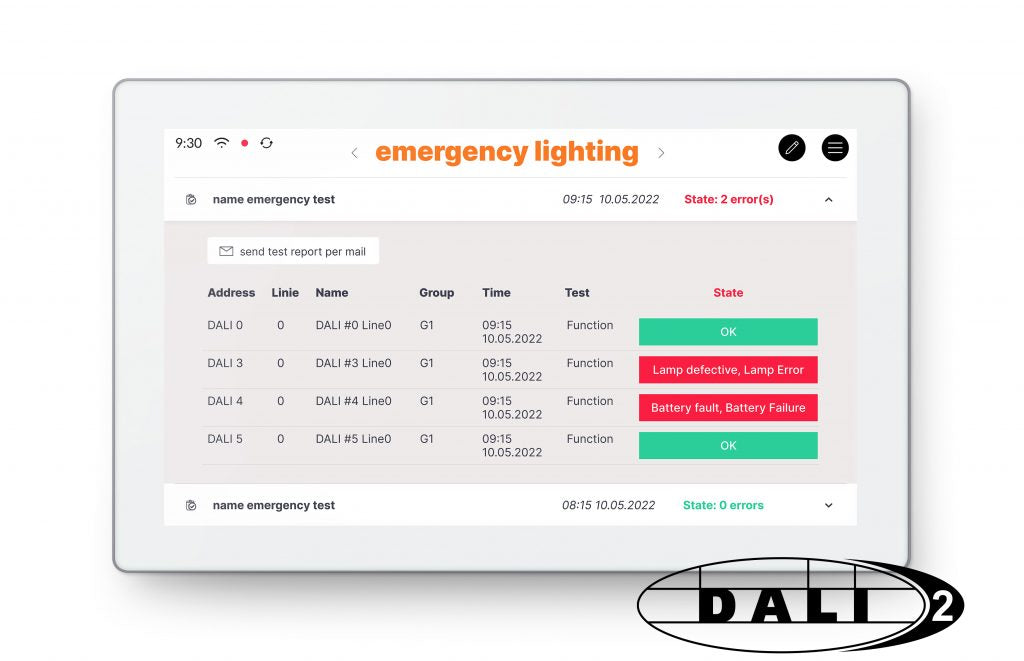

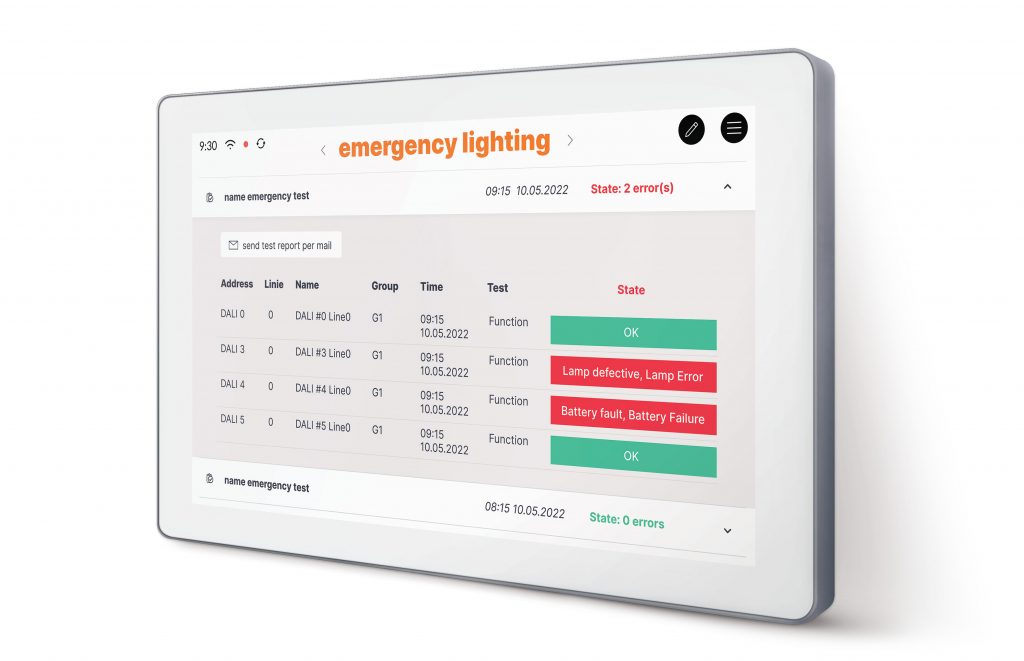

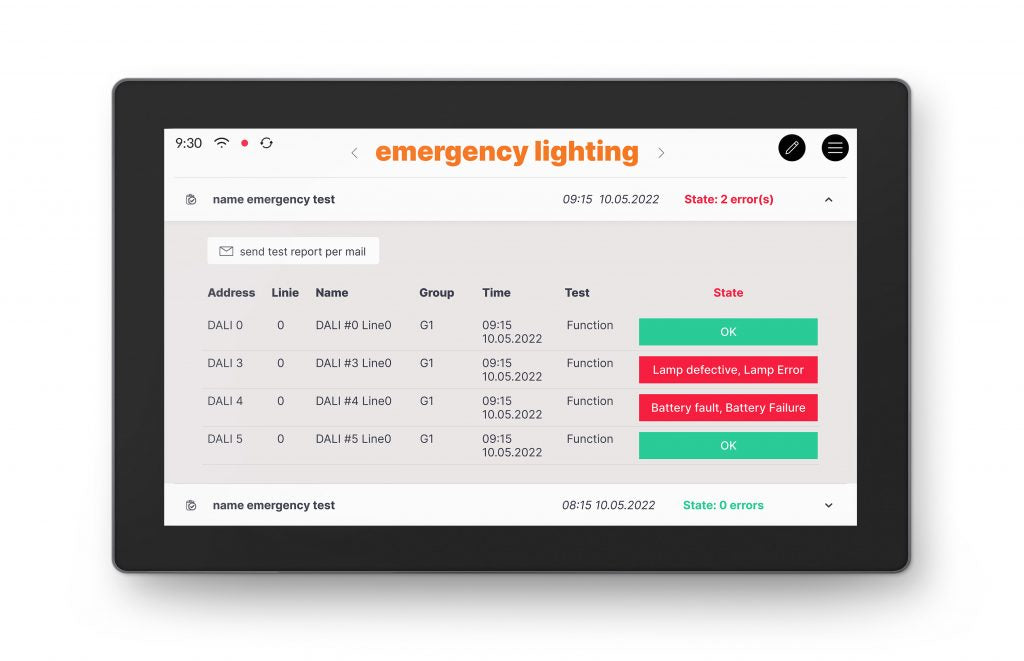

By default, the display shows the user interface for monitoring the emergency light system with the current status and results of the last performed tests.

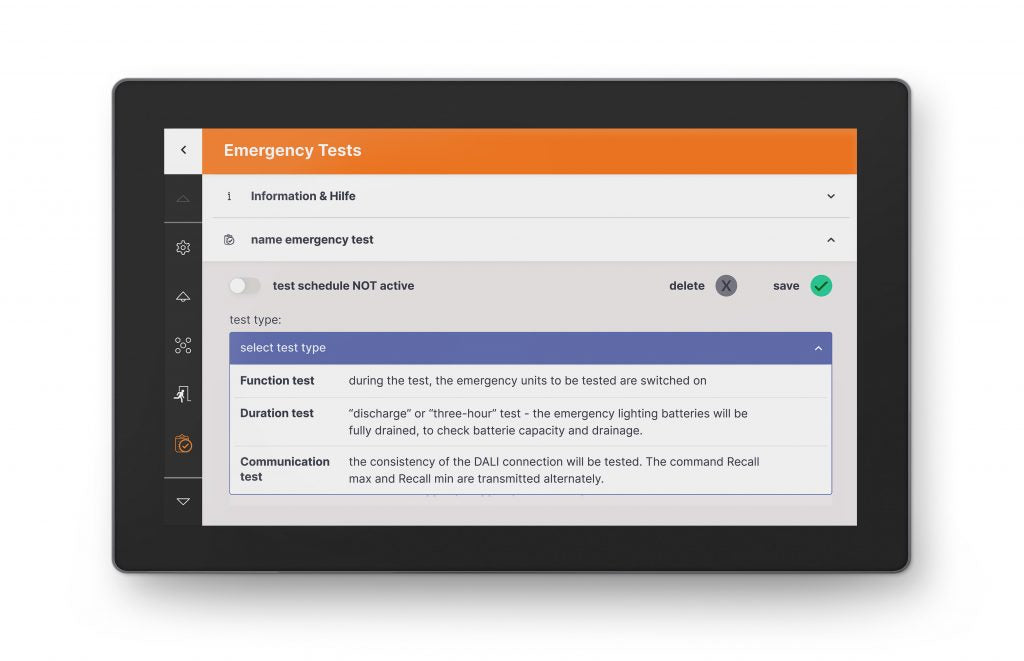

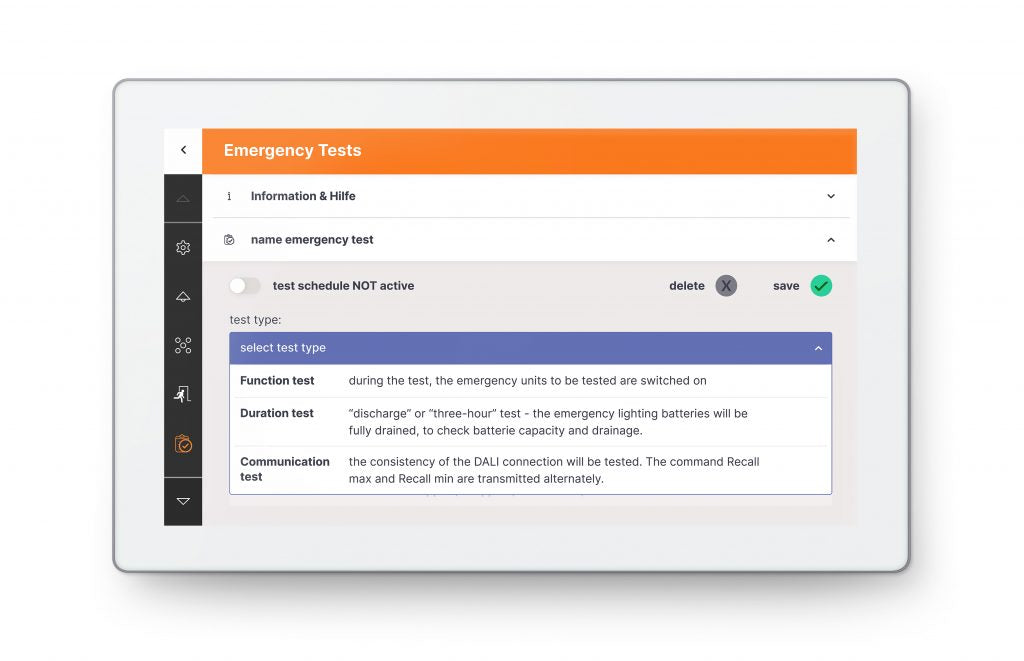

The configuration menu can be used to schedule and automate communication, function and duration tests.
The device thus allows automatic and uncomplicated monitoring and functionality check of the emergency lighting system.
The test results are logged and can be emailed or downloaded via the display’s web interface.
The DALI-2 Display 7″ Emergency is a multifunctional control and operating unit for for DALI emergency light systems.
rated sensors.
Specifications
Technical data
Ambient temperature | -10°C to +50°C |
Protection class | IP20 |
Connection wire cross section | Max. 1.5mm² |
Mounting | On back box |
Electrical data
Supply | 24-56V DC |
Current consumption |
3.5W |
Function
Device type | DALI-2 Control and operating unit |
Multi-master capable |
Yes |
Interface |
DALI |
Dimensions
Length | 178mm |
Width |
111mm |
Height |
8mm |
Colour | Display frame white, housing metallic grey |
