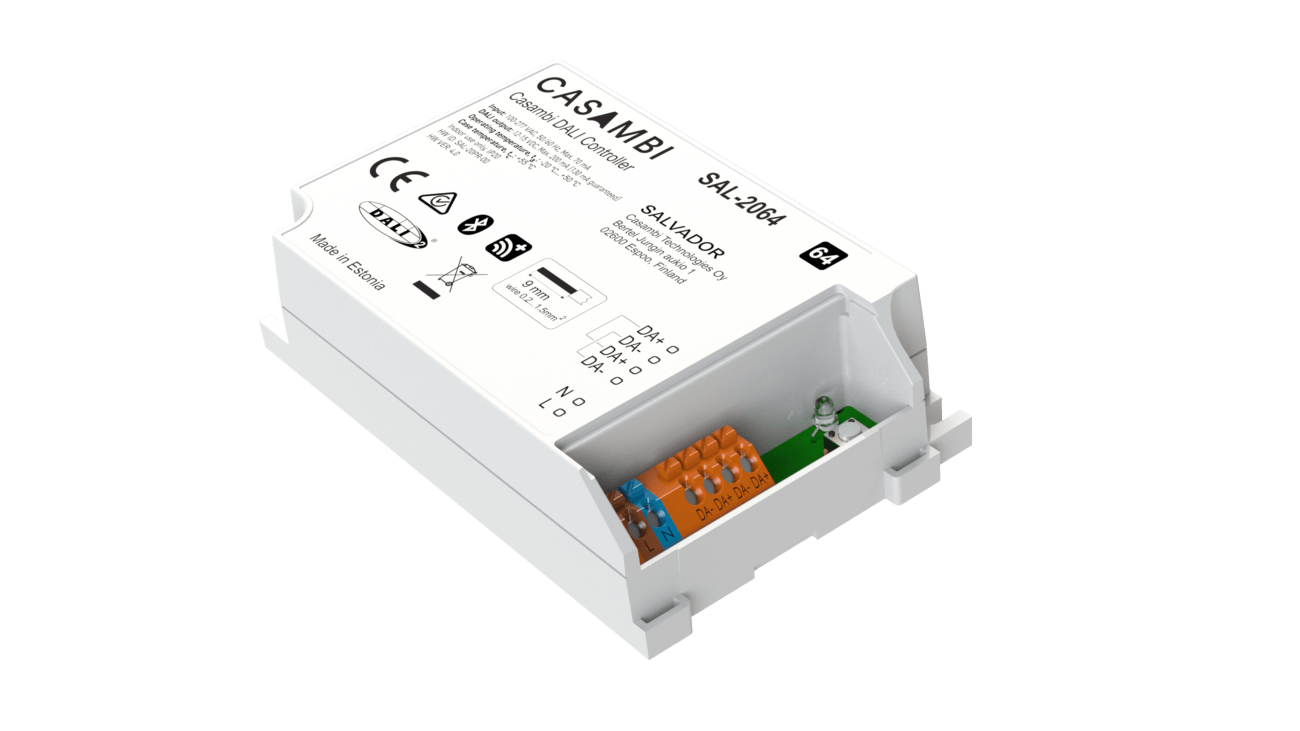

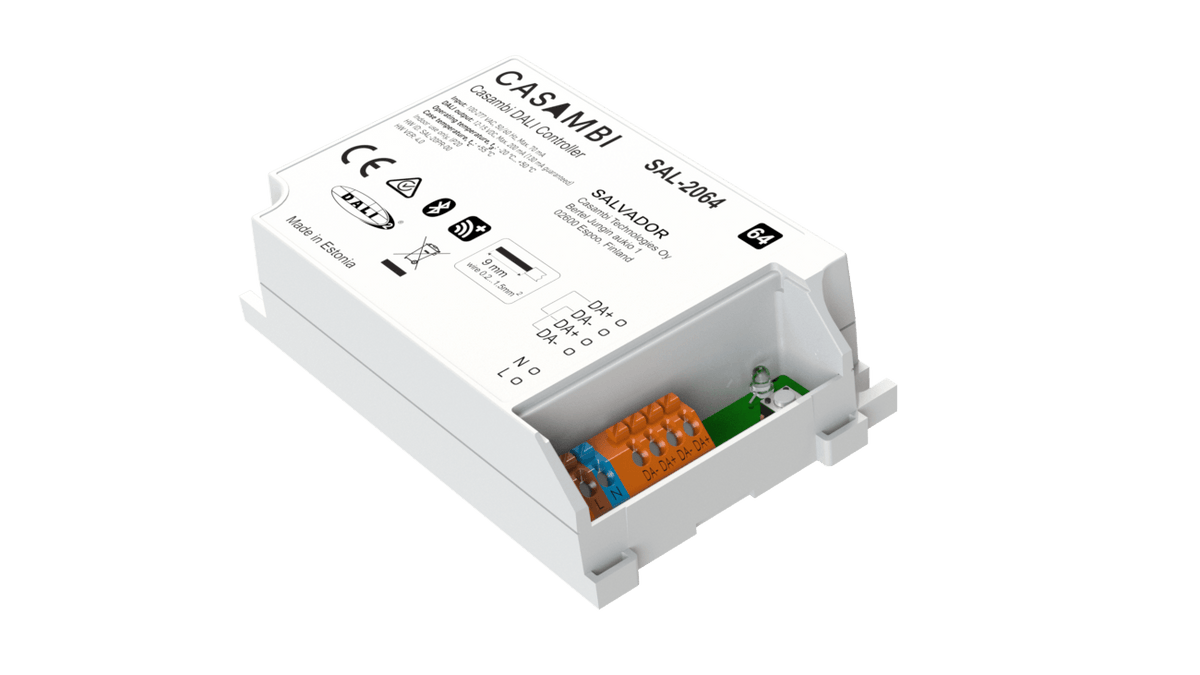

Casambi Salvador Series 2000 DALI controller product family includes three models: SAL-2016, SAL-2032 and SAL-2064.
SAL-2016: Can address up to 16 DALI driver addresses.
SAL-2032: Can address up to 32 DALI driver addresses.
SAL-2064: Can address the maximum allowed 64 DALI driver addresses.
The Salvador Series 2000 DALI controller seamlessly integrates wired DALI drivers into the Casambi system. When integrated, DALI luminaires appear as luminaires in the Casambi network. Notably, this product supports industry standards such as DALI D4i, DALI DT6, and DALI DT8.
The Salvador Series 2000 DALI controller are only for connecting to DALI drivers. No additional DALI master units must be connected to Salvador Series 2000 DALI controller products.
The Salvador Series 2000 DALI controllers have integrated 130 mA bus power supply for the DALI operation.
The Salvador Series 2000 DALI controllers allow addressing, programming and control of wired DALI drivers individually from the Casambi App. They enable the creation of hybrid networks consisting of both Casambi Ready and DALI devices. All DALI drivers connected to a Salvador can be easily programmed and controlled in the same way as Casambi Ready devices via the Casambi App. This eliminates the need for complex DALI configuration software, or a DALI specialist. The Salvador SAL-2016 DALI controller is ideal for low-budget renovations, replacing multiple standalone DALI networks, while the Salvador SAL-2064 DALI controller is designed for larger hybrid network setups.
Casambi Nodes
One Salvador is one Casambi node. Each addressed wired DALI driver is one Casambi node. A Casambi network can contain up to 250 nodes, regardless of whether they are wired DALI drivers or Casambi Ready devices.
Groups and Scenes
Wired DALI luminaires appear in the Casambi App in the same way as Casambi Ready luminaires. They can be individually controlled, grouped, or used in scenes that combine both Casambi Ready and wired DALI luminaires.
Wireless Control
Salvador Series 2000 DALI controllers can be controlled with the Casambi app, available for iOS and Android devices. The Casambi app can be downloaded free of charge from Apple App Store and Google Play Store.
Specifications
Technical data
Input
Voltage range: 100 – 277 VAC
Frequency: 50/60 Hz
Max. mains current: 70 mA
Inrush current: 20 A
DALI Output
Voltage range: 12 – 15 VDC
Guaranteed current: 130 mA
Max. current: 200 mA
Max. shutdown current: <4 mA
Radio transceiver
Operating frequencies: 2402…2480 MHz
Maximum output power: +8 dBm
Operating conditions
Ambient temperature, ta : -20 °C to +50 °C
Max. case temperature, tc : +55 °C
Storage temperature: -25…+75 °C
Max. relative humidity: 0…80 %, non-cond.
Mechanical data
Dimensions (w/o strain relief): 106,0 x 67,0 x 28,0 mm
Weight (w/o strain relief): 100 g
Degree of protection: IP20 (indoor use only)
Connectors
Wire range, solid/flexible: 0,2 – 1,5 mm2 AWG 16–24
Wire strip length: 9 mm
Internal Real Time Clock back-up time
Back-up time, min.: 12 hours
Insulation
Casing to DALI: Reinforced
Certifications
CE
