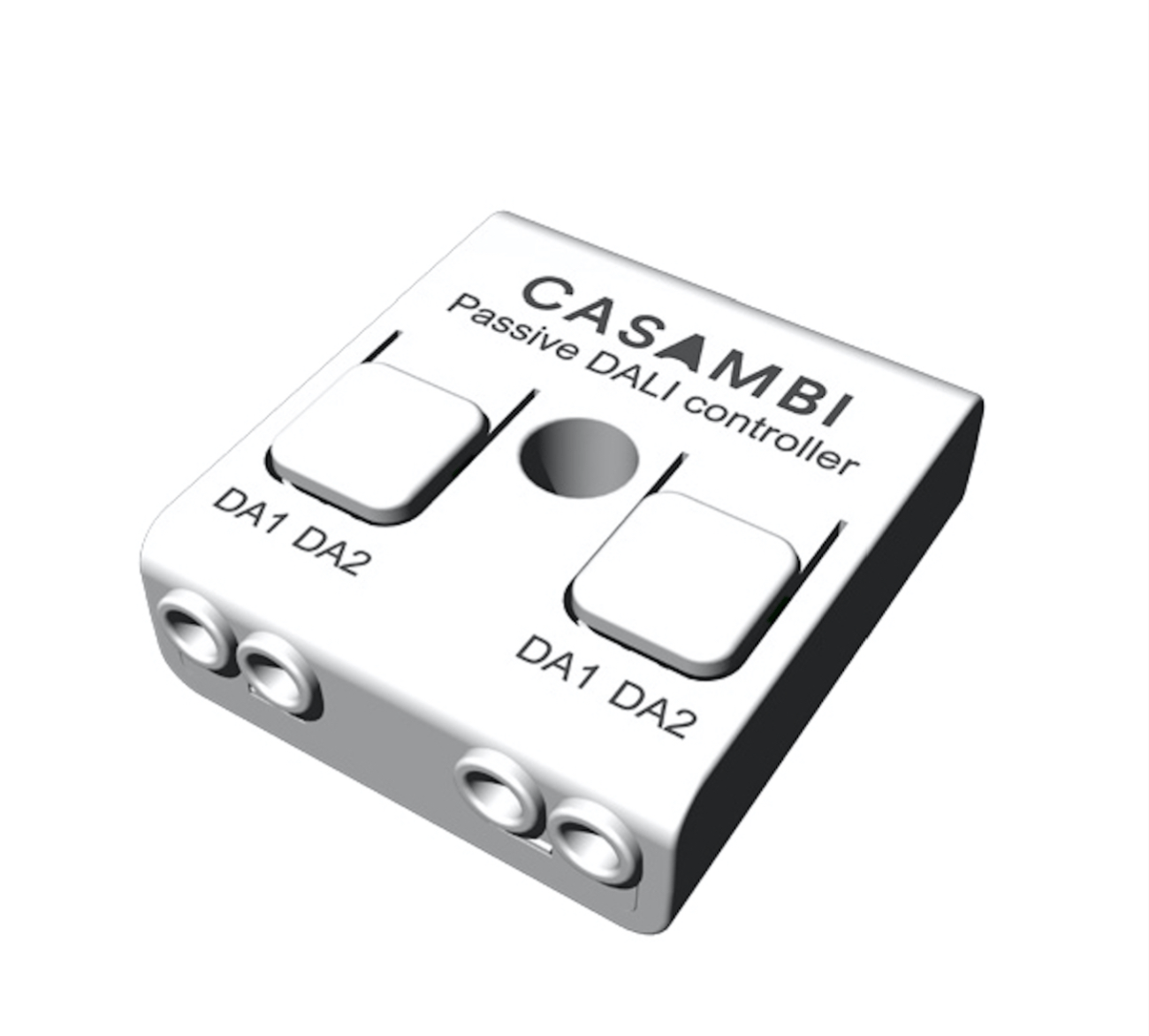

Casambi CBU-DCS Bluetooth controllable DALI controller
Couldn't load pickup availability
The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.
Need help, call 01444 246 128
Casambi CBU-DCS is a Bluetooth controllable, Casambi enabled DALI controller. CBU-DCS does not have its own power supply. Instead, it is powered directly from a DALI bus.
CBU-DCS can be used with a DALI sensor for presence detection or daylight harvesting, or it can be used for controlling DALI drivers that have an integrated DALI bus power supply. When used with drivers it supports range of options, including Device Type 6, Device Type 8, Tuneable white control and RGB control.
CBU-DCS has two sets of connectors. These connectors are internally connected in parallel with each other. This way the DALI bus can be routed through the product for easy installation.
Specifications
Technical data
Input
DALI Bus
Voltage range
9,5 – 22,5 VDC
Max. input current when idle
5 mA
Peak input current
30 mA
Max. DALI bus current
250 mA
DALI loads
3
Dimensions
40,4 x 36,3 x 14,0 mm
Weight
15 g
Protection
IP20 (indoor use only)
Note: DALI gateway function works only with Casambi Evolution firmware
