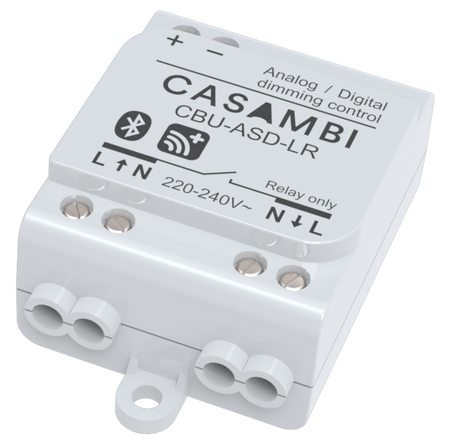

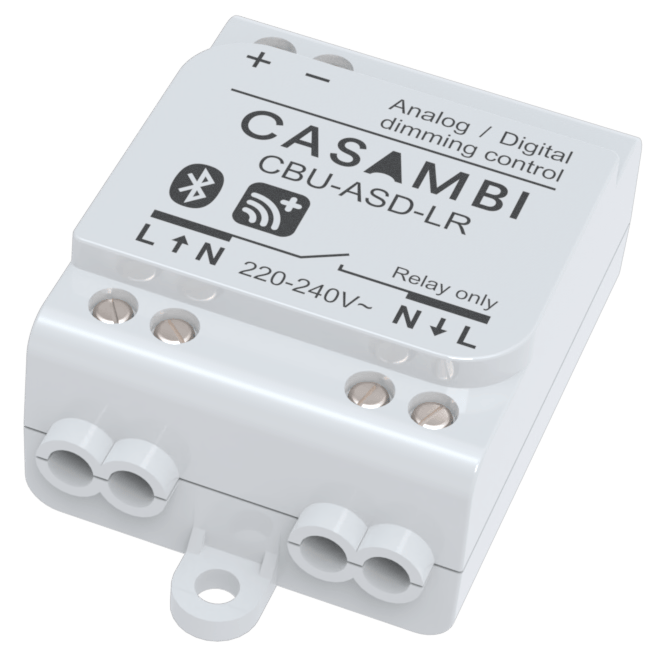

Casambi CBU-ASD-LR Control Unit
Couldn't load pickup availability
The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.
Need help, call 01444 246 128
Casambi CBU-ASD-LR is a wireless, long-range control unit for any type of driver with 0-10V, 1-10V or DALI dimming interface. The CBU-ASD-LR is available with either analog 0-10V (and 1-10V) or digital standalone DALI control interface.
With standalone DALI [1] output, CBU-ASD-LR acts both as a controller and power supply, making it possible to connect directly to an LED driver with DALI interface without needing an external DALI power supply. This so-called standalone DALI makes it possible to implement multi-channel lighting systems with adjustable color (RGB and RGBW) or color temperature (CCT), while keeping the wiring and number of components to a minimum.
Features
- Wirelessly controllable
- No need for an external gateway device
- Forms automatically a fast wireless mesh network
- Very small form factor for luminaire installation
- Configurable analog/digital output
- Analog output: 0-10V sinking/sourcing
- Digital output: Standalone DALI
- Easily implemented RGB and color temperature controls
- Controllable switched mains output
- Dimming from a standard on/off wall switches
- Possibility to configure to support “no voltage” push button
- Can be configured to work with a standard PIR sensor (via smart-switching)
- Device firmware can be updated over-the-air
- Casambi cloud service enhances the user experience
The CBU-ASD-LR is controlled wirelessly with Casambi smartphone and tablet applications using Bluetooth 5.0 protocol. The Casambi app can be downloaded free of charge from Apple App Store and Google Play Store.
[1] The CBU-ASD-LR does not comply with IEC 62386 and therefore is not designed to be connected to an existing DALI network. The module can be used only in a closed system, i.e. as a part of a lighting system which is not connected to an external DALI network.
Specifications
Technical data
Input
Voltage range: 220-240 VAC
Frequency: 50 Hz
Max. mains current: 0,6 A
Mains Output
Output relay: SSR on phase line
Voltage range: 220-240 VAC
Frequency: 50 HZ
**Risk of fire. Mains output is only allowed to connect to external relay. It must not be connected to LED driver mains input.
0-10 V Output
Voltage range: 0-10 VDC
Maximum number of drivers connected: 1 pc
DALI Output
Voltage range: 9-12 VDC
Radio transceiver
Operating frequencies: 2402…2480 Mhz
Maximum output power: +8 dBm
Operating conditions
Ambient temperature, ta: -20…+50°C (Iout 0 A)
**ta max 50°C. Derate output current linearly from +40°C…+ 50°C…
Max. case temperature, tc: +75 °C
Storage temperature: -25…+75 °C
Max. relative humidity: 0…80%, non-cond.
Connectors
Wire range, solid & stranded: 0,5-1,5 mm2 (14-22 AWG)
Wire strip length: 6-7 mm
Tightening torque: 0,4 Nm
Mechanical data
Dimensions: 56,5 x 35,8 x 22,3 mm
Weight: 48 g
Degree of protection: IP20 (indoor use only)
Protection class: Class II
Datasheet
Download CBU-ASD datasheet (English)
Declaration of Conformity
EU Declaration of Conformity
UKCA Declaration of Conformity
Certifications
CBU-ASD-LR IEC 61347 -1 _ -2-11
CBU-ASD-LR EN 300328 v2_2_2
CBU-ASD-LR EN 50665
CBU-ASD-LR EN IEC 61000 55015 EN61547
CBU-ASD-LR EN 301 489-1 -17 V3.2.4
