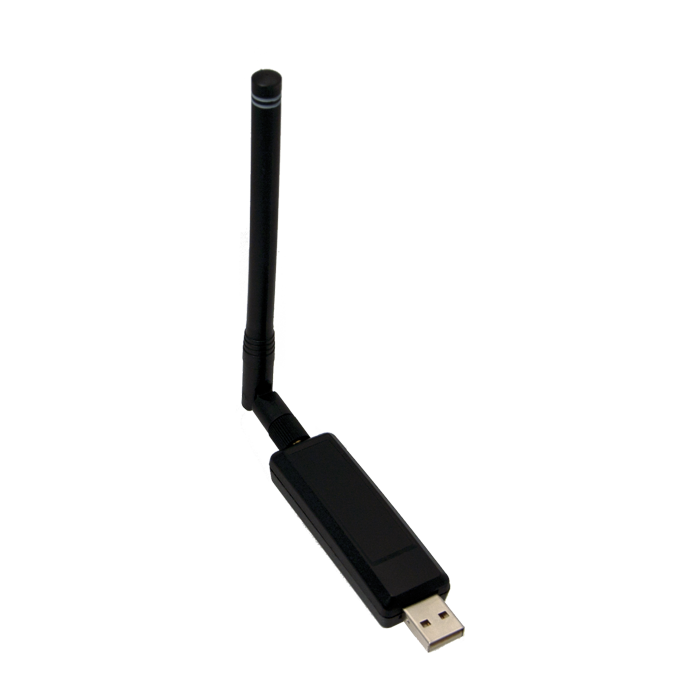

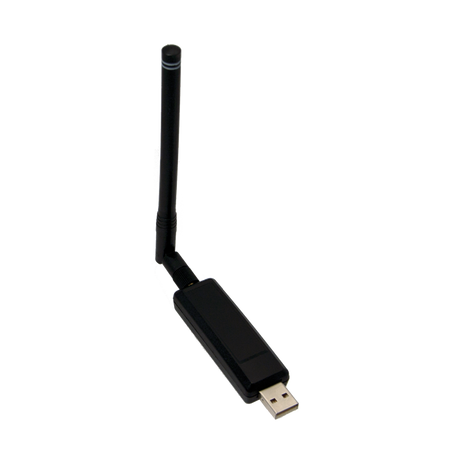

BMeters RFM-RX2 Wireless M-BUS receiver/configurator
Regular price
£228.46
Estimated UK delivery 1 - 7 days
Couldn't load pickup availability
The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.
Need help, call 01444 246 128
The RFM-RX2 Wireless M-BUS receiver is an USB device used to configure and collect the reading data transmitted by the radio modules installed on water meters, heat meters, heat cost allocators and temperature sensor produced by B METERS in accordance with the WMBUS standard.
The RFM-RX2 is designed to be used in combination with the setup and readings softwares developed by B METERS.
The receiver is equipped with a SMA connector for the easy removal and replacing of the 360° orient-able antenna.
Technical Features
| Dimension (HxLxP) | 65 x 22 x 15 mm |
| Supported Operating Systems | Windows 10, Windows 8, Windows 7, Windows Server 2003 Service Pack 2, Windows Server 2008, Windows Server 2008 R2, Windows Vista Service Pack 1, Windows XP Service Pack 3 |
| Signal coverage | Up to 300 meters |
| Protection class | IP40 |
| Communication frequency | 868 MHz or @ 921 MHz |
| Transmission protocol | Wireless M-BUS EN 13757:4 |
| Connection and power supply | USB |
| Antenna |
¼ λ Rubber antenna |
