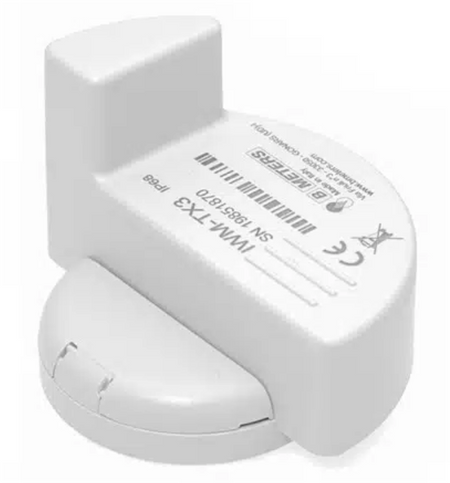

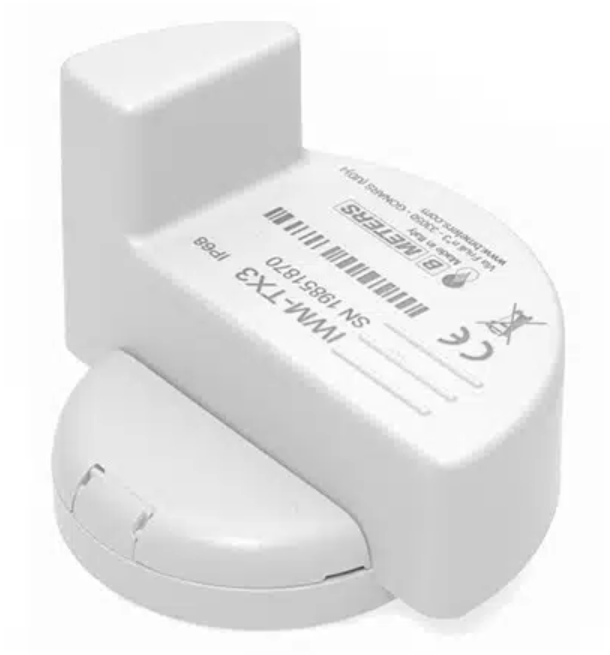

BMeters IWM-TX3 Wireless M-BUS OMS module for multi jet meters with inductive interface
Couldn't load pickup availability
The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.
Need help, call 01444 246 128
The IWM-TX3 has been designed to allow wireless remote reading in different types of applications, from the residential sector to the commercial and industrial sectors.
The radio module, thanks to the presence of the inductive target in the meter dial, allows the reading of the volume consumption without any constraints of access to the site in walk-by mode or AMR (automatic meter reading), in respect of the WMBUS standard and complying with the OMS (open metering system) specification.
Consumption analysis with reverse flow compensation that provides an always perfect alignment between the totaliser and the meter.
Fraud control (removal of the radio module, application of external magnetic field, reverse flow, identification of system loss). Magnetic tampering of the meter and removal are recorded and reported to the receiving system via radio transmission. The presence of reverse flow is recorded in an additional register that allows calculating the amount of water passed in reverse. The loss function can be monitored at the time of reading or by the AMR system if a timely update is desired.
IP68 protection* allows the use of the module also for meters installed in difficult environments.
The NFC interface allows configuration and commissioning of the device with the use of a simple smartphone app.
Technical Features
| Radio interface | WMbus EN13757-4 @868 MHz ≤ 25 mW, mode T1 |
| Coverage | 500 meters* |
| Compatible water meters | GMDM-I, GMB-RP-I, GMB-I |
| Pulse output minimum value (K) | 1 litre |
| Configuration | Via radio (with RFM-RX2 and software B Metering), NFC (with Android app) |
| Energy supply | Non-replaceable lithium battery, maximum lifetime 10 years** |
| Protection class | IP68*** |
| Weight | 124 g |
| Size (l x p x h) | 88 x 75 x 60 mm |
| Working temperature | +1° / +55°C |
| Transmitted data | Volume (consumption), total of backward flow, 12 monthly historical values, battery status, alarms |
| Alarms | Discharged battery, module removal, magnetic fraud attempt, backward flow, leakage detection |
| Module programming requirements | Android device (smartphone, tablet, etc.) with an NFC interface and the NFC IWM Config APP freely downloadable from GOOGLE PLAY RFM-RX2 receiver and Windows PC with B Metering software installed |
* In optimal signal transmission conditions
** The battery life strongly depends on the working time window, set during the configuration process, and on the environmental conditions
*** IP68: maximum 24 hours of continuous submersion at 1 m depth
