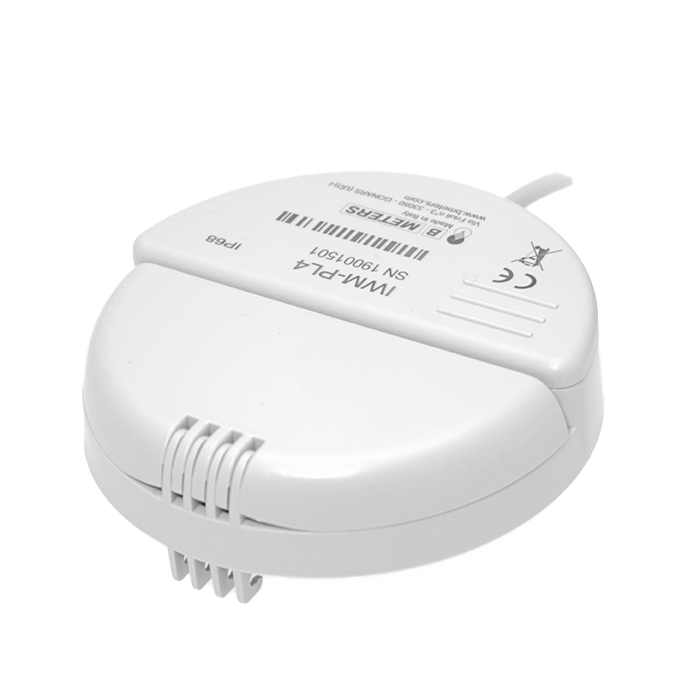

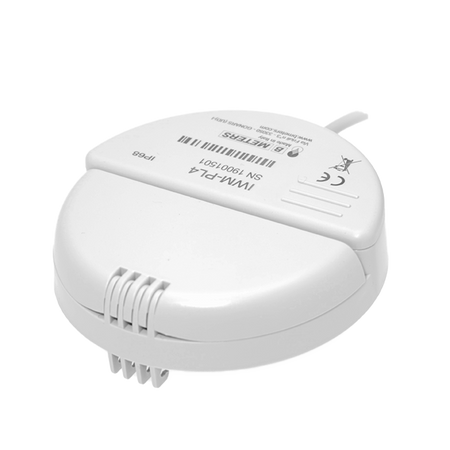

BMeters IWM-PL4 Electronic pulse emitter module
Couldn't load pickup availability
The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.
Need help, call 01444 246 128
The IWM-PL4 is a non-magnetic pulse emitting module suitable for numerous applications for remote reading in residential, commercial and industrial installations applicable to the series of woltmann water meters mod. WDE-K50.
It allows the acquisition of meter consumption by third-party systems with an universal interface and integrating advanced counting and fraud detection functions.
The use of an inductive target on the meter excludes the possibility of magnetic fraud and makes the application insensitive to the vibrations of the pipes.
Technical Features
| Output signal | Supply: maximum 30VDC (100mA) Type: polarized open-collector |
| Cable length |
1.5 meters (4 conductors) |
| Compatible water meters | WDE-K50 |
| Pulse output minimum value (K) | 10 liters (up to DN125) or 100 liters (from DN150) |
| Energy supply | Non-replaceable lithium battery, max lifetime 10 years* |
| Protection class | IP68** |
| Weight | 160 g |
| Size (L x P x H, cable excluded) |
100 x 100 x 25 mm |
| Working temperature | +1°C – +55°C |
| Module programming requirements | Android device (smartphone, tablet, etc.) with a NFC interface and the NFC IWM Config APP freely downloadable from GOOGLE PLAY |
* The battery life strongly depends on the working time window, set during the configuration process, and on the environmental conditions.
** IP68: maximum 24 hours of continuous submersion at 1 m depth.
