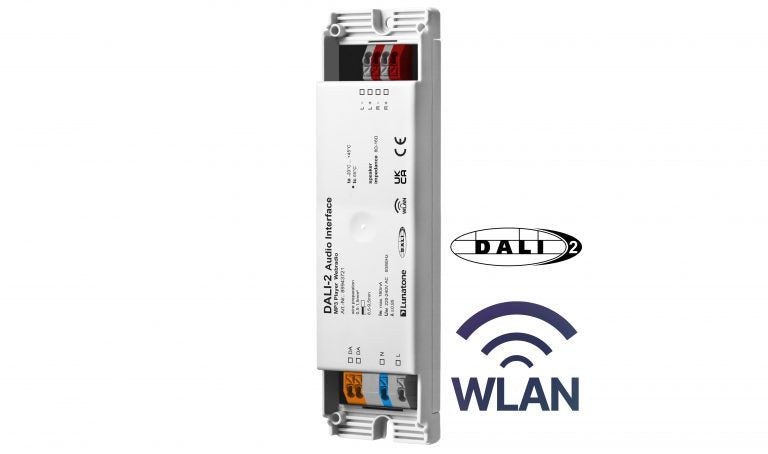

DALI-2 Audio Interface

Lunatone

Regular price £143.18

Shipping calculated at checkout.

DALI-2 device for playback of internet radio stations, loudspeakers or intercom systems can be easily connected via the appropriate connector.

The control of radio stations and volume works via DALI. For example, up to 16 internet radio stations can be accessed via scenes.


The WLAN interface is used for integration into the local network and playback of internet radio stations.

Configurations can be made with the Lunatone Software DALI Cockpit. The device is suitable for ceiling installation or device installation.

Specifications

Technical data

Ambient temperature -20°C to +60°C
Protection class IP20/IP40
Mounting Remote ceiling, integration in class II devices


Electrical data

Input L,N:

Input type
mains- voltage: L, N
Input voltage range
110Vac … 240Vac
Max. input supply current
31mA (@110Vac), 21mA (@240Vac)
Input supply frequency 50Hz / 60Hz
Power consumption max.
4W
start-up time
< 1s


Speaker cable connection:

Left L-, L+
Right
R-, R+



Output DA, DA:

Output type DALI
Open circuit proof
Yes
Short circuit proof
Yes



Function

DALI gear for playback of internet radio stations or audio files via the DALI bus

Dimensions

Length 159mm
Width
42mm
Height
22mm
Colour White
