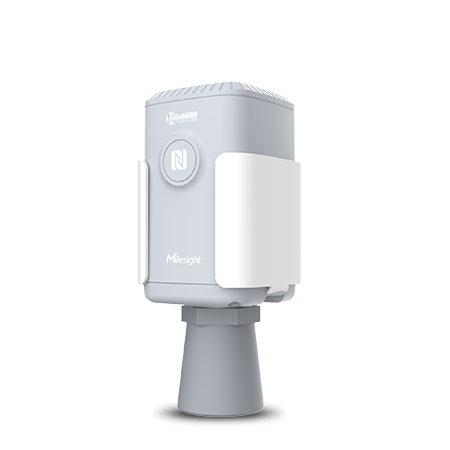

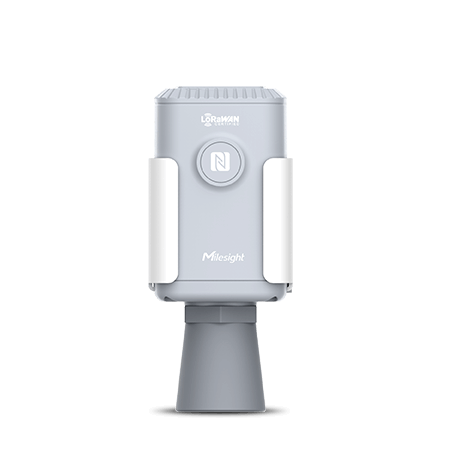

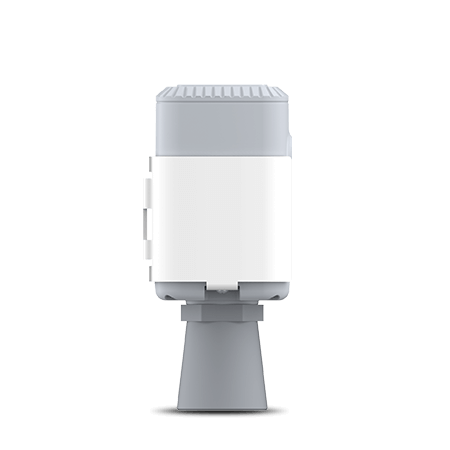

Milesight Ultrasonic Distance/Level Sensor - EM500-UDL
Couldn't load pickup availability
The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.
Need help, call 01444 246 128
The Milesight ultrasonic distance/level sensor is designed to make measurements of various kinds of liquids or objects much easier through ultrasonic waves, making it applicable in industries of many kinds.
Supported with ultrasonic waves, a non-contact detection technology, the device is able to detect a wide range of liquids, including corrosive chemicals while providing impressive measuring precision of up to ±1% accuracy. This allows the device to integrate seamlessly with numerous industrial applications, especially in the plastic, petroleum, fertilizer, and other industries that involve large usage of chemicals.
The device offers an extensive measurement range of 0.25 to 10m with a variety of probing options to your choice. It is also highly competent in measuring containers of distinct sizes, including containers with small openings. The device can be tailor-made for a diverse scenarios.
Feature
- Accurate Non-Contact Detection with Ultrasonic Waves
- Wide Measuring Range and Multiple Probing Options
- Exceptional IP67 Rated Performance and UV Resistant
- 10 Years Long Battery Life
- LoRaWAN® Wireless Deployment
- Remote Management via Milesight IoT Cloud
- Easy NFC Configuration
Specifications
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN®, Milesight D2D |
| Antenna | Internal Antenna |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16dBm(868MHz)/20dBm(915MHz)/19dBm(470MHz) |
| Sensitivity | -137dBm @300bps |
| Mode | OTAA/ABP Class A |
| Measurement | |
|---|---|
| Range & Accuracy | W050: 0.3 - 5 m, ±1% FS W100: 0.5 - 10 m, ±1% FS C050: 0.25 - 5 m, ± (1+0.3%*S) cm, S=distance C100: 0.25 - 8 m, ± (1+0.3%*S) cm, S=distance |
| Resolution | 1 mm |
| Others | |
|---|---|
| LED | 1 × LED Indicator (Internal) |
| Button | 1 × Power/Reset Button (Internal) |
| USB | 1 × USB Type-C(Internal) for Configuration and Console |
| Software | |
|---|---|
| Power On & Off | NFC, Power Button (Internal) |
| Configuration | Mobile App(via NFC), PC software(via USB Type-C), Downlink |
| Advanced Feature | Data Storage (1,000 entries), Data Retransmission, Data Retrievability, Threshold Alarm, Change Alarm, Milesight D2D Controller |
| Physical Characteristics | |
|---|---|
| Power Supply | 1 × 19000 mAh ER34615 Li-SOCL2 Battery |
| Battery Life* | 10 years (10 min interval, 25°C) |
| Operating Temperature | W050/W100: -30°C to +65°C C050/C100: -15°C to +60°C |
| Relative Humidity | 0% to 80% (non-condensing) |
| Ingress Protection | IP67 |
| Housing | ABS + PC |
| Color | Black grey (C050/C100), Grey (W050/W100) |
| Weight | C050/C100: 362.7g, W050/W100: 370.4g (With Battery and Mounting bracket) |
| Dimension | 156.1 × 71 × 69.5 mm (6.1 × 2.8 × 2.7 in) |
| Installation | Pole, Wall or DIN Rail Mounting |
| Approvals | |
|---|---|
| Regulatory | CE, FCC, ISED, Telec, LoRaWAN® Certified |
| EMC | EN 55032, EN 55035 |
| EMS | IEC 61000-4-2 Level 3, IEC 61000-4-3 Level 2, IEC 61000-4-8 Level 4 |
| Radio Frequency | FCC Part 15B, FCC Part 15.247, EN 300 330, EN 301 489-1/3, EN 300 220-1/2 |
| Safety | EN62368-1 |
| Environmental | RoHS |
* Tested under laboratory conditions and for guideline purposes only.
